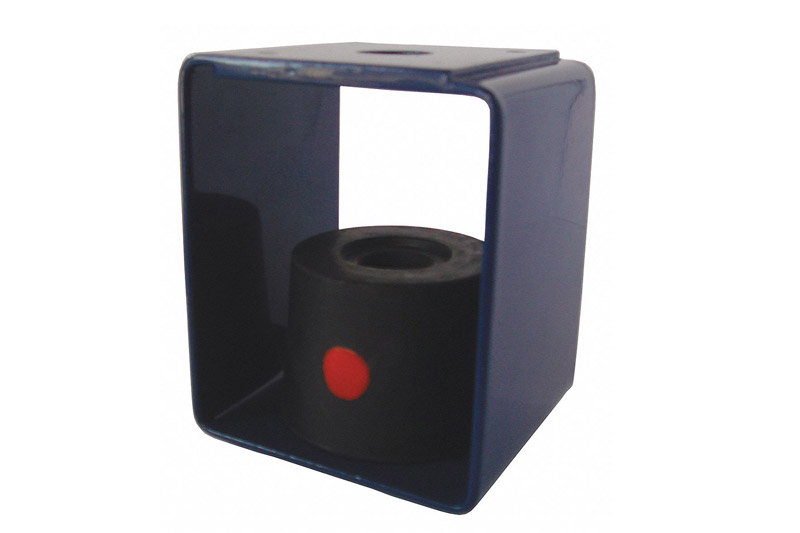

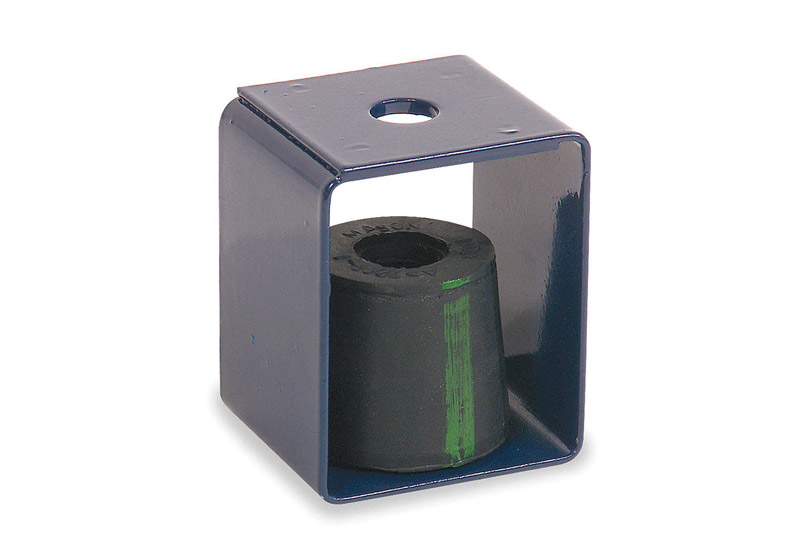

A comprehensive range of rubber hangers offering the designer optimum performance at higher audible frequencies if noise control is of paramount importance.

Wide load ranges and fixing requirements are catered for.

Design Features

  • Epoxy powder coated steel frame tested to 5 x rated load. Other steel parts are zinc plated.
  • Rubber hangers supplied with failsafe steel overload washers.
  • Rubber hangers have natural rubber elements with deflections up to 8 mm.
  • Unit remains captive and fail-safe.
  • Capable of up to 15° angular
  • Can be fitted in drop rod or direct to supporting structure.
  • Supplied complete with a spring washer and set screw lower fixing.
Typical Applications
  • Axial Fans and Fan Coil Units.
  • Ductwork and Attenuators.
  • Exhaust Systems.
  • Acoustic Ceilings.
  • Any other suspended plant
Part No. Colour Code Rate Load (Kg) Deflection At Rate Norminal Dimensions (MM) weight (kg) max
A B C D E F G
SMI-28-RH Yellow 28 6 100 40 55 30.5 36 10 M8 0.38
SMI-50-R.H b 50 6 100 40 55 30.5 36 10 M8 0.38
SMI-80-R.H Red 80 6 100 40 55 30.5 36 10 M8 0.38
SMI-110-R.H Yellow 110 8 140 70 90 36 52 11 M10 1.4
SMI-180-R.H b 180 8 140 70 90 36 52 11 M10 1.4
SMI-280-R.H Red 280 8 140 70 90 36 52 11 M10 1.4
Load Per Hanger At Typical Spacings (Kg)
Pipe Bore (MM) Weight Per Metre (Kg) 2M 2.5M 3M 3.5M 4M 4.5M 5M
50 10 20 25 30 * * *
65 14 28 35 42 49 * * *
80 18 36 45 54 63 * * *
100 26 52 65 78 91 * * *
125 34 68 85 102 119 136 * *
150 44 88 110 132 154 176 * *
200 86 172 215 258 * * * *

Installation Notes:

Pipes should be supported on either side of changes of direction and additional hangers used to support heavy fittings and vertical droppers.

For larger pipe sizes two hangers can be used at each support position
